3TNV88F-ESGY Water Cooled Engine

3TNV88F-ESGY DIESEL ENGINE



SPECIFICATION ESGY
CYLINDERS3
BORE x STROKE (mm) 88 x 90
DISPLACEMENT L (ci) )1.64 (100)
GROSS POWER hp (kW) 24.4 (18.2)
RATED SPEED 2200
LENGTH w/fan in (mm) 24.1 (611)
WIDTH in (mm) 22.7 (577)
HEIGHT in (mm) 26.7 (679)
WEIGHT lbs (kg) ~ 342 (155)

TORQUE

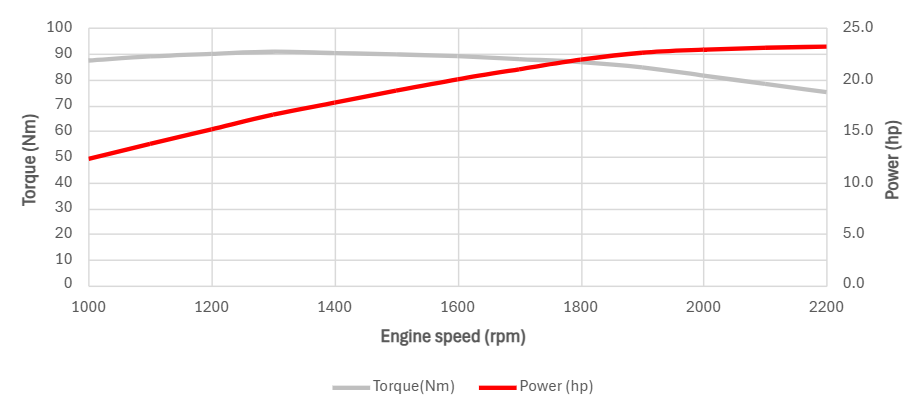

3TNV88F-ESGY torque chart

POWER

3TNV88F-ESGY power chart

NOW EVEN MORE RELIABLE



The YANMAR line of Final Tier 4 engines continues to build upon the legendary reliability of the YANMAR TNV line with a focus on vibration  reduction and high-strength materials. The result is an engine more than capable of handling the most demanding applications.

Building off the proven TNV design, YANMAR has achieved superior exhaust emissions utilizing common rail direct-injection, exhaust gas recirculation, precise ECU engine control and a diesel particulate filter. YANMAR engines meet the strict NTE and NRTC test requirements for Final Tier 4 and EU Stage V.

YANMAR continues its reputation for superior starting characteristics by refining the combustion process to assure more precise fuel delivery and control. The result is reduced emissions, improved performance over a wide range of applications and increased fuel economy.

YANMAR is engaged in the relentless pursuit of high efficiency, low emission, diesel engines. With technology that already meets the next generation of environmental emissions standards, YANMAR is providing sustainable solutions towards a new era of prosperity.
