|SPECIFICATION||FTT (2 Stage Turbo)|
|EMISSION COMPLIANCE||EU Stage V / EPA • CARB Final Tier 4|
|ASPIRATION||Two Stage T/C with CAC|
|FUEL INJECTION||Common Rail Direct Injection (CRDI)|
|FUEL INJECTION SYSTEM||Common Rail|
|ATS||DOC + DPF + SCR|
|NO. OF CYLINDERS||4|
|BORE X STROKE mm||107 x 127|

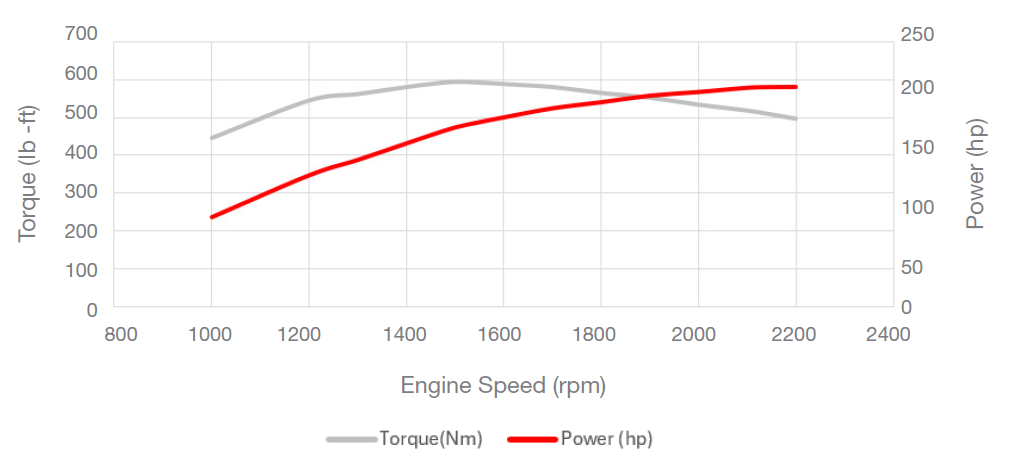

|RATED OUTPUT hp/rpm||170.3 / 1800 | 189.1 / 2000 | 207.9 / 2200|
|LxWxH mm||977 x 743 x 939 (without ATS)|
|DRY WEIGHT kg/lbs||560 / 1235 (without ATS)|
NOW EVEN MORE RELIABLE
The YANMAR line of Final Tier 4 engines continues to build upon the legendary reliability of the YANMAR TNV line with a focus on vibration reduction and high-strength materials. The result is an engine more than capable of handling the most demanding applications.
Building off the proven TNV design, YANMAR has achieved superior exhaust emissions utilizing common rail direct-injection, exhaust gas recirculation, precise ECU engine control and a diesel particulate filter. YANMAR engines meet the strict NTE and NRTC test requirements for Final Tier 4 and EU Stage V.
YANMAR continues its reputation for superior starting characteristics by refining the combustion process to assure more precise fuel delivery and control. The result is reduced emissions, improved performance over a wide range of applications and increased fuel economy.
YANMAR is engaged in the relentless pursuit of high efficiency, low emission, diesel engines. With technology that already meets the next generation of environmental emissions standards, YANMAR is providing sustainable solutions towards a new era of prosperity.
